Product overview
The HXSM6-12 fully enclosed and fully insulated inflatable ring switchgear independently developed by the company has passed the type test of the National High voltage Electrical Apparatus Test Center. The products are widely used in 10kV/6kV distribution system, and are the preferred switch products for various users in urban and rural areas. The switchgear is modular unit mode, which can be combined according to different uses; It consists of fixed unit combination and expandable unit to meet the needs of flexible use of compact switchgear in various substations.
The HXSM6-12 fully enclosed fully insulated inflatable ring switchgear is a completely sealed system in which the live parts and switches are enclosed in a stainless steel body. The whole switching device is not affected by external environmental conditions, which can ensure the reliability of operation and personal safety. And realize maintenance free. By selecting an expandable bus, any combination can be achieved to achieve full modularity. Extended bus safety insulation and shielding ensure reliability and safety. HXSM6-12 fully enclosed and fully insulated inflatable ring network switchgear can also provide TV-oriented automation solutions, forming the concept of intelligent switches, and minimize the workload of on-site installation and commissioning.
HXSM6-12 fully enclosed and fully insulated inflatable ring switchgear is divided into non-expandable standard configuration and expandable standard configuration. Due to the combination of full module and half module and self-extensibility, it has a very special flexibility. The ring switchgear implements the GB standard. The design life of operation under indoor conditions (20 ° C) is more than 30 years.

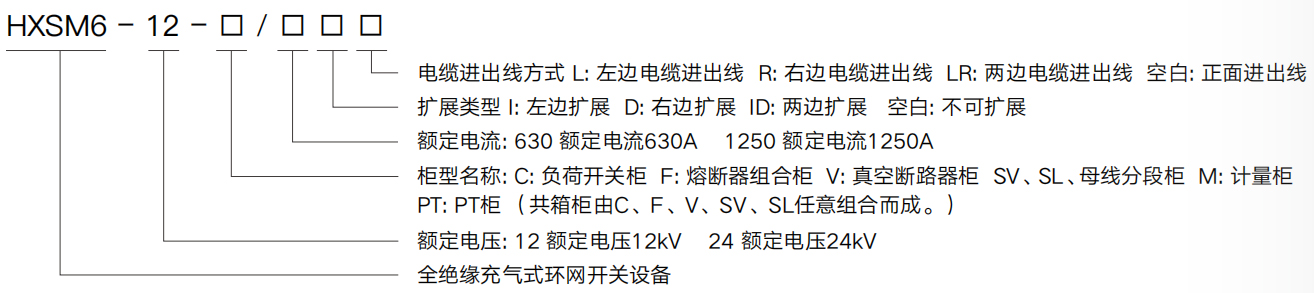

Model meaning
Illustrate by example
1.HXSM6-12-C/630DL indicates the load switch cabinet, rated voltage 12kV, rated current 630A, right extension, left cable inlet and outlet mode.
2.HXSM6-12-CF/630IR indicates the combination of the load switch unit and the fuse combination unit, the bus voltage is 12KV, the bus current is 630A, the left extension, the right cable inlet and outlet mode.
